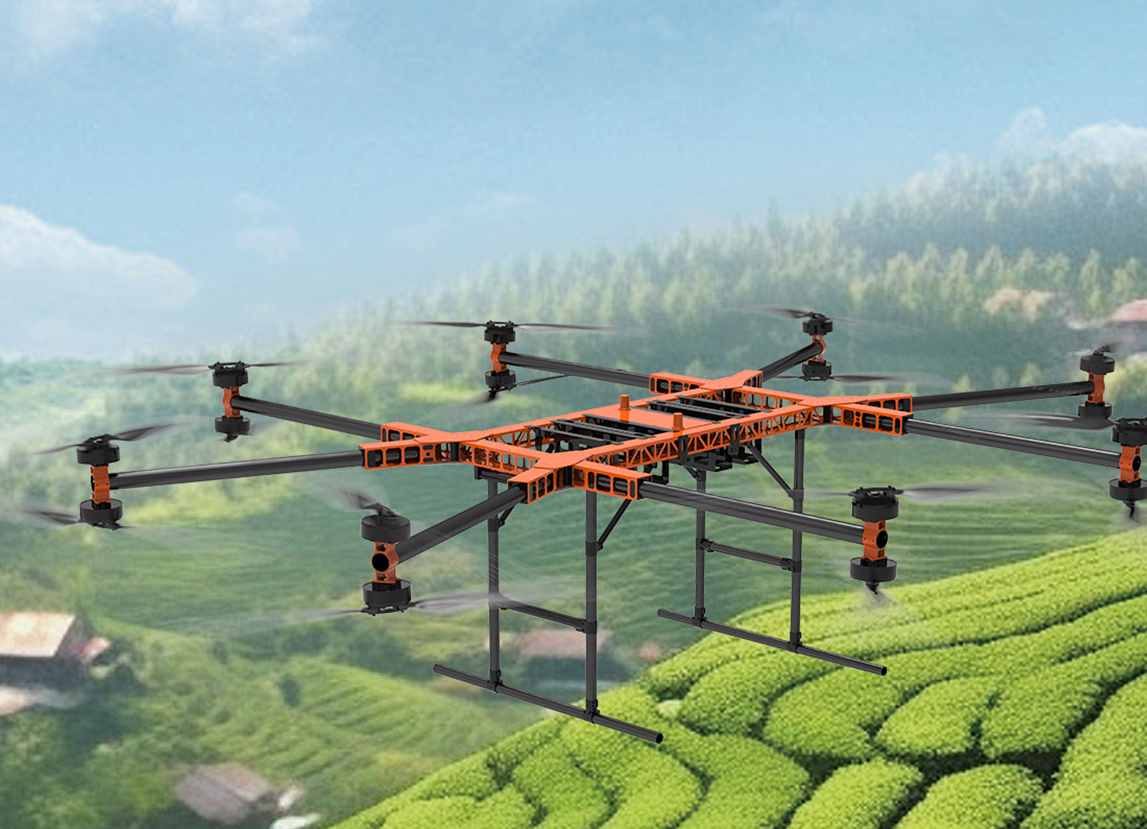

Detailed Introduction to the Mercury X480 Heavy-Lift Transport UAV

The Mercury X480 is a heavy-lift transport unmanned aerial vehicle (UAV). Its fuselage is made of carbon fiber and aluminum alloy composite materials. Powered by a fully electric system, it is equipped with dual power systems and dual backup battery systems, which ensure flight safety and stability while extending endurance. The Mercury X480 is equipped with an intelligent guided flight function that can automatically avoid no-fly zones. It also comes standard with a dual-control system per aircraft, supporting relay flight, and allows flexible selection of transport methods such as landing, airdropping and hoisting. Boasting multi-functional capabilities including transportation, delivery and hoisting, this UAV is suitable for operations under complex terrain conditions such as rivers, lakes and mountain roads. With a payload capacity of 200 kg, it demonstrates distinct advantages in mountain operations and maritime transportation. Whether for rapid delivery of emergency rescue supplies or regular transportation of goods to remote areas, the Mercury X480 delivers an efficient and reliable solution.

Projec Product Specifications
Maximum Takeoff Weight 480 kg
Standard Takeoff Weight 390 kg
Payload Capacity 200 kg
Propeller Folded Dimensions 4.2 m (L) × 3.5 m (W) × 0.9 m (H)
Transport Dimensions 2.26 m (L) × 1.34 m (W) × 0.84 m (H)
Maximum Design Payload 290 kg
Standard Continuous Operation Payload 200 kg
Standard Hovering Endurance 16.5 min (with 40% remaining battery)
Propeller Deployed Dimensions 5.4 m (L) × 4.7 m (W) × 0.9 m (H)
Structural Configuration Plug-in Split Fuselage Structure
